They say a picture is worth a thousand words. In NEET Biology, a picture might just be worth a seat in a government medical college.

With nearly 20–25% of NEET Biology questions being diagram-based or derived from labels, your ability to visualise the 'plant cell' or the 'structure of mitochondria' is your biggest competitive advantage.

Let’s dive into the essential visual checklist every NEET aspirant needs to master.

Most Important NEET Diagrams in NCERT Class 11 Biology

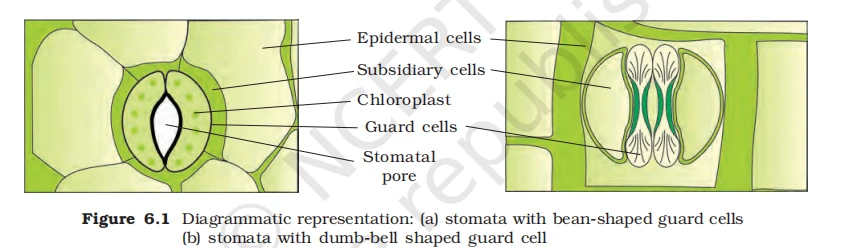

Diagram of stomata with bean-shaped guard cells (dicots) and dumb-bell shaped guard cells (monocots)

NEET Biology Diagrammatic representation of stomata

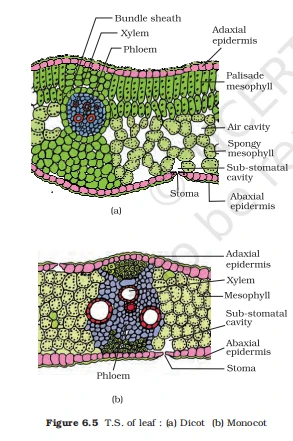

Cross-section of a dicot leaf with palisade mesophyll and a monocot leaf with uniform mesophyll

NEET Biology T.S Dicot and Monocot of leaf

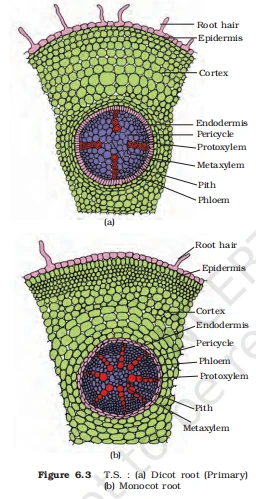

Comparison of a dicot root with a small pith and a monocot root with a large, well-developed pith

NEET Biology T.S Dicot and Monocot of root

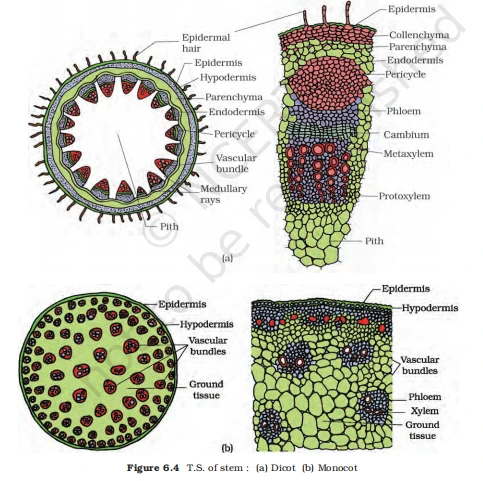

Dicot stem with vascular bundles in a ring versus a monocot stem with scattered vascular bundles

NEET Biology T.S Dicot and Monocot of stem

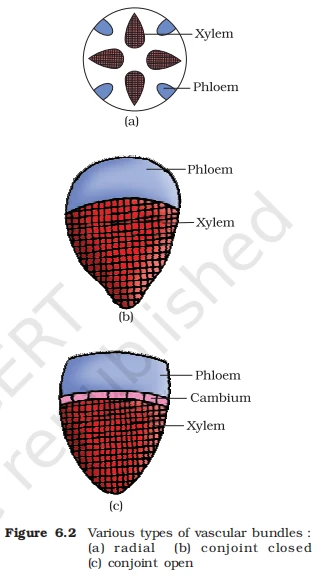

Diagrams showing radial, conjoint closed, and conjoint open vascular bundle arrangements

NEET Biology Various types of vascular bundles

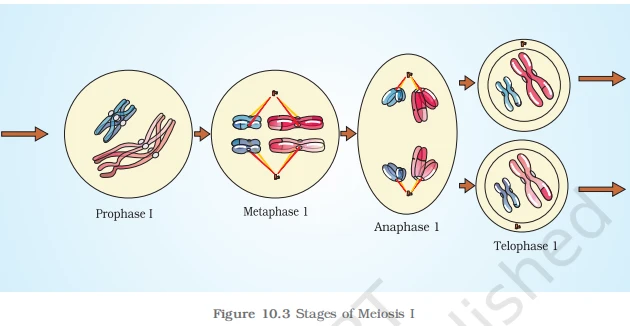

Stages of Meiosis I: Prophase I, Metaphase 1, Anaphase 1, and Telophase 1 showing homologous pair separation

NEET Biology Stages of Meiosis 1 (Cell Cycle and Cell Division)

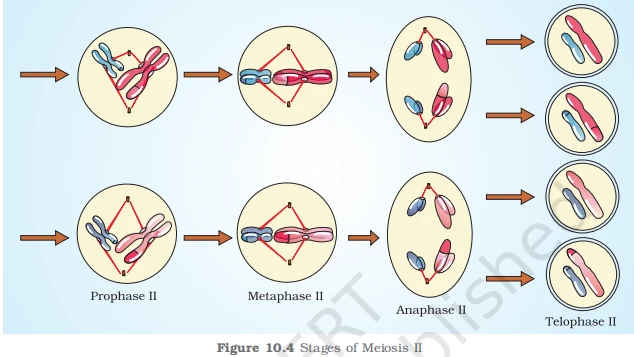

Stages of Meiosis II: Prophase II, Metaphase II, Anaphase II, and Telophase II showing sister chromatid separation

NEET Biology Stages of Meiosis 2 (Cell Cycle and Cell Division)

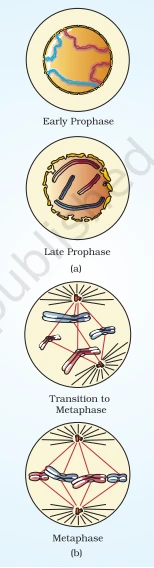

Early stages of mitosis including Early Prophase, Late Prophase, Transition to Metaphase, and Metaphase

NEET Biology Stages of Mitosis (Cell Cycle and Cell Division)

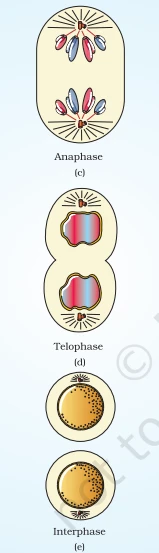

Final stages of mitosis including Anaphase, Telophase, and a representative image of a cell in Interphase

NEET Biology Stages of Mitosis 2 (Cell Cycle and Cell Division)

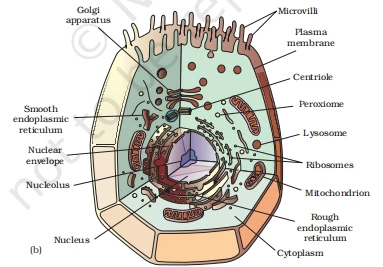

Diagram of an animal cell with labelled organelles like Golgi, mitochondria, and centrioles

NEET Biology Animal Cell (Cell The Unit of Life)

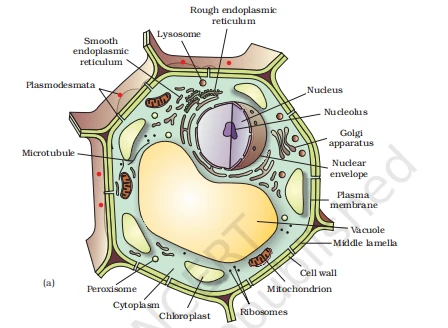

Diagram of a plant cell featuring a large central vacuole, cell wall, and chloroplasts

NEET Biology Plant Cell (Cell The Unit of Life)

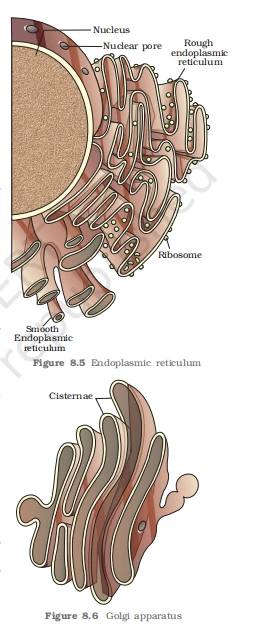

Labeled diagrams of the Rough/Smooth ER and the cisternae of the Golgi apparatus

NEET Biology Endoplasmic Reticulum and Golgi apparatus

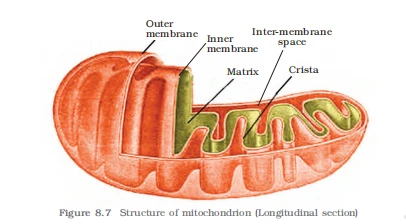

Longitudinal section of a mitochondrion showing the outer/inner membranes, matrix, and cristae

NEET Biology Structure of Mitochondria (Cell The Unit of Life)

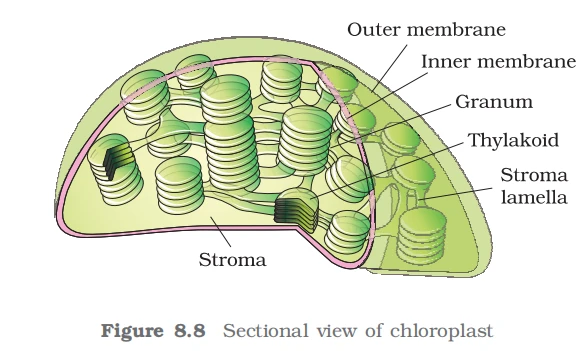

Sectional view of a chloroplast showing grana, thylakoids, stroma, and double membranes

NEET Biology Sectional View of Chloroplast (Cell The Unit of Life)

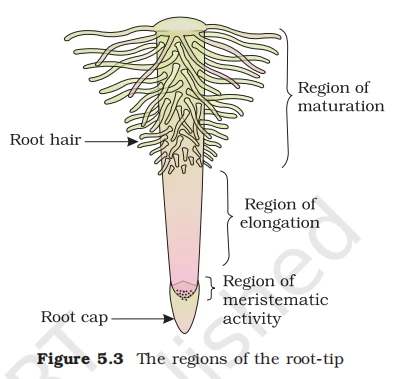

Diagram of plant root tip regions: root cap, meristematic activity, elongation, and maturation with root hairs

NEET Biology Regions of root-tip

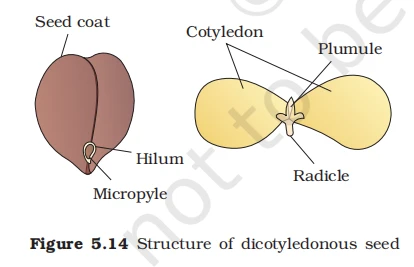

Structure of a dicotyledonous seed showing seed coat, hilum, micropyle, cotyledon, plumule, and radicle

NEET Biology Structure of dicot

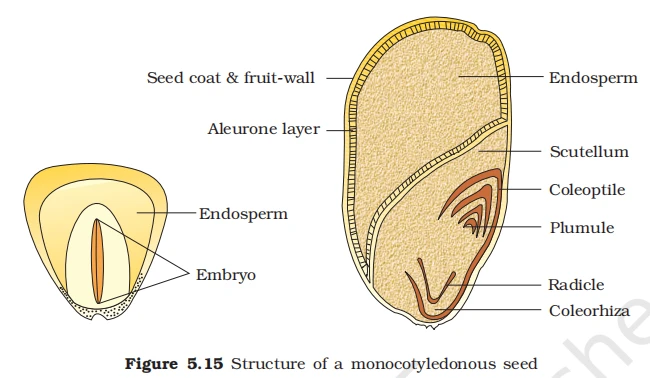

Monocot seed anatomy diagram labeling endosperm, scutellum, coleoptile, plumule, radicle, and coleorhiza

NEET Biology Structure of monocot

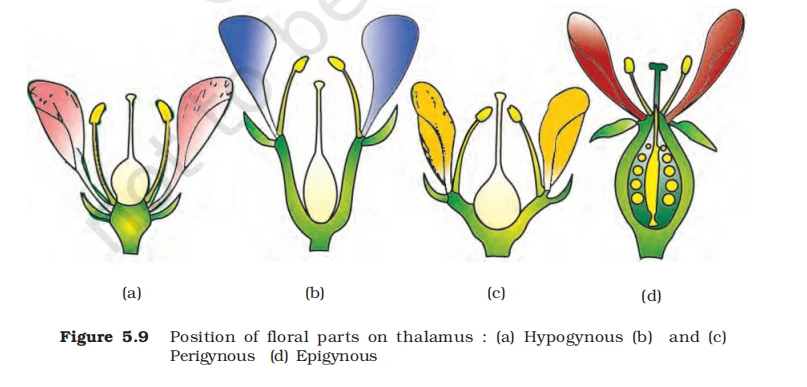

Types of flowers based on ovary position: hypogynous, perigynous, and epigynous floral parts diagram

NEET Biology Types of flowers based on the position of ovary

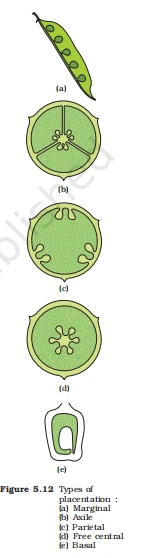

Five types of plant placentation: marginal, axile, parietal, free central, and basal ovary diagrams

NEET Biology Types of placentation

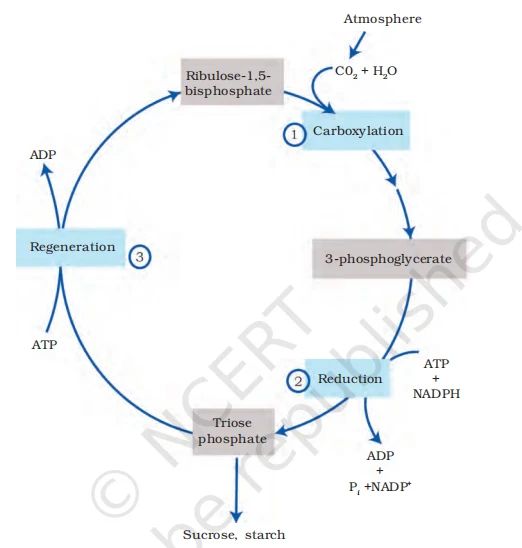

Diagram of the C3 cycle showing three main stages: carboxylation, reduction, and regeneration of RuBP

NEET Biology C3 cycle

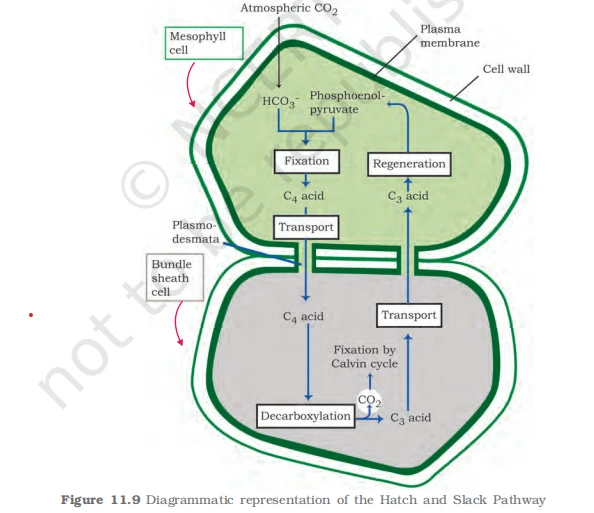

C4 pathway diagram illustrating carbon fixation between mesophyll and bundle sheath cells

NEET Biology C4

NEET Biology Chemiosmosis

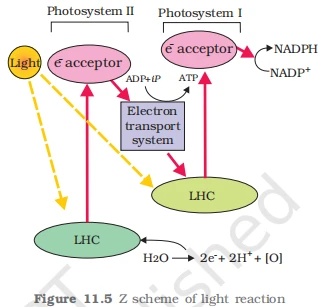

Z scheme diagram of light reactions showing electron transport between Photosystem II and Photosystem I

NEET Biology Z scheme of light reaction

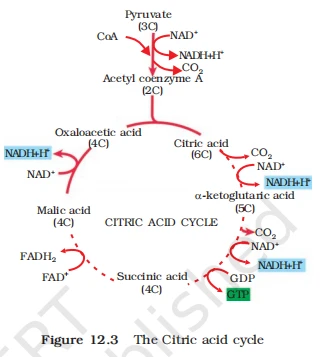

Citric acid cycle diagram showing conversion of Pyruvate to Acetyl CoA and steps of the Krebs cycle

NEET Biology Citric acid cycle

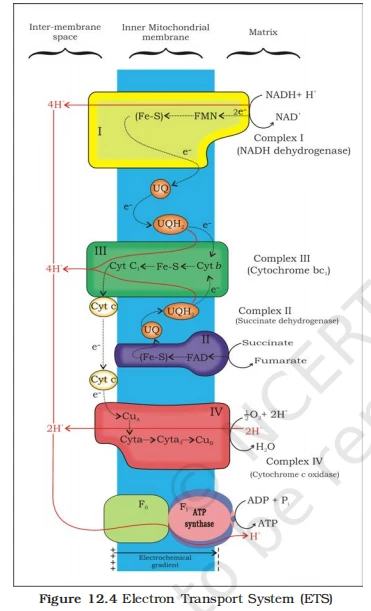

Diagram of the Mitochondrial Electron Transport System (ETS) showing Complexes I to IV and ATP synthase

NEET Biology Electron Transport System (ETS)

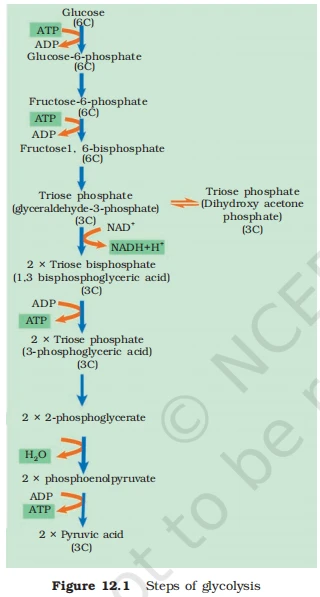

Flowchart of Glycolysis steps showing the breakdown of Glucose into Pyruvic acid with ATP and NADH production

NEET Biology Steps of glycolysis

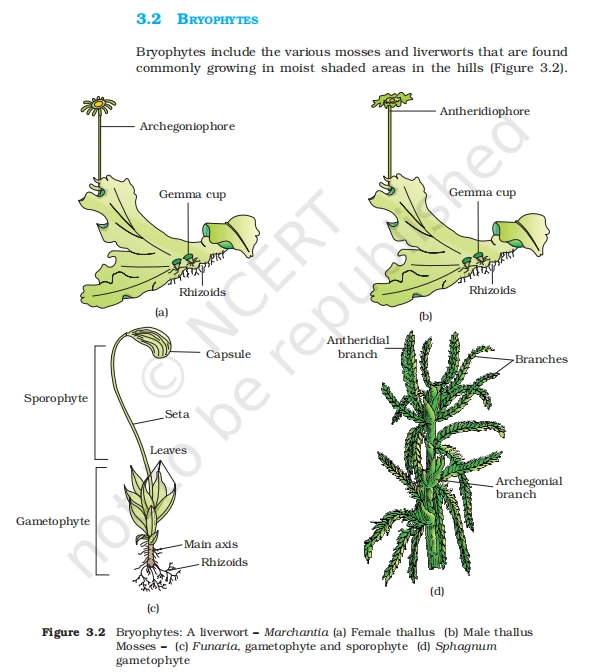

Botanical illustrations of Bryophytes including Marchantia liverwort, Funaria moss, and Sphagnum gametophyte

NEET Biology Bryophytes

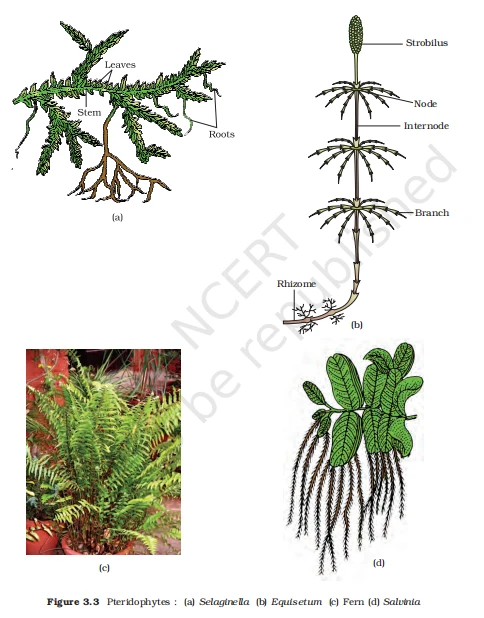

Types of Pteridophytes showing Selaginella, Equisetum with strobili, Fern, and Salvinia plant structures

NEET Biology Pteridophytes

Diagram of cockroach alimentary canal showing crop, gizzard, hepatic caeca, and Malpighian tubules

NEET Biology Alimentary Canal of Cockroach

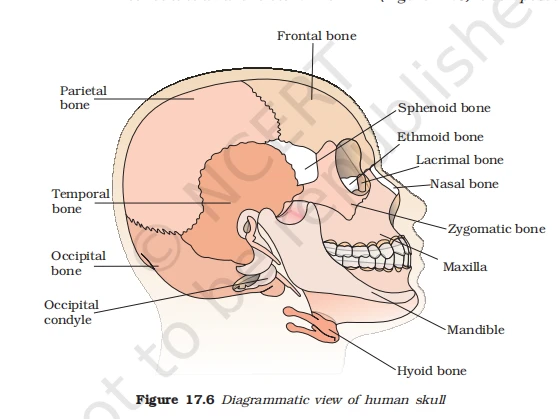

Side view of human skull bones including frontal, parietal, temporal, occipital, maxilla, and mandible

NEET Biology Diagram of human skull

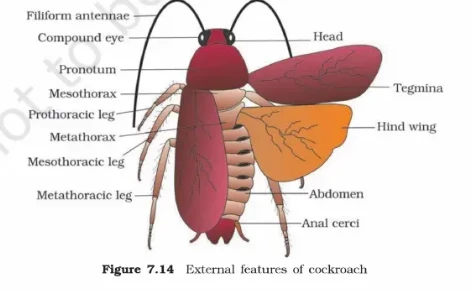

External anatomy of a cockroach showing filiform antennae, compound eye, tegmina, and thoracic legs

NEET Biology External features of cockroach

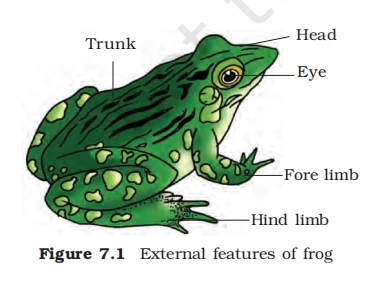

External features of a frog illustration highlighting the head, trunk, eye, and fore and hind limbs

NEET Biology Features of Frog

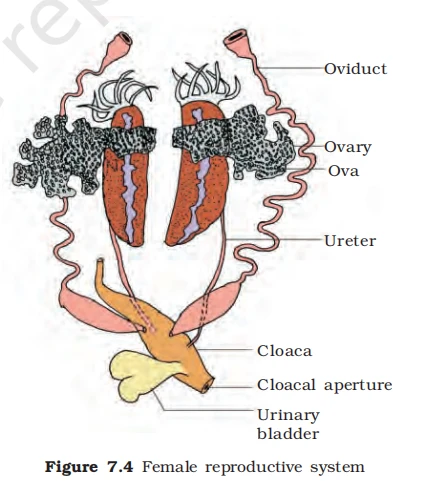

Anatomy of female frog reproductive system showing ovaries, ova, oviducts, ureters, and cloaca

NEET Biology Female reproductive system

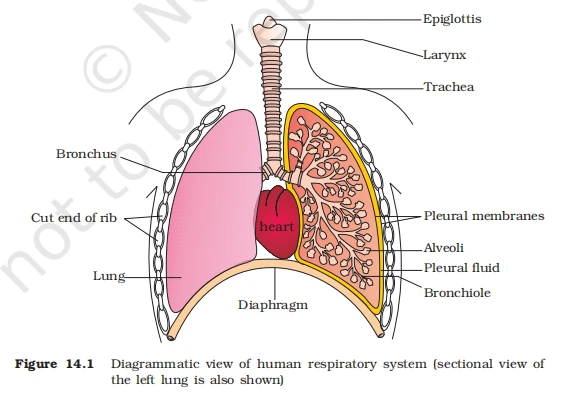

Sectional view of human respiratory system showing larynx, trachea, lungs, bronchi, and diaphragm

NEET Biology Human Respiratory System

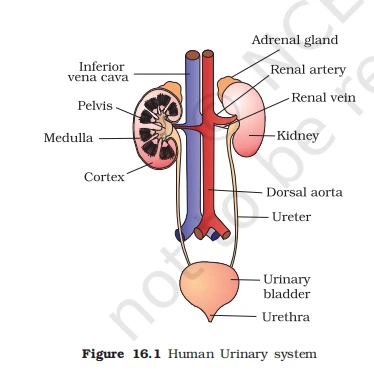

Diagram of human urinary system including kidneys, adrenal glands, ureters, bladder, and urethra

NEET Biology Human Urinary System

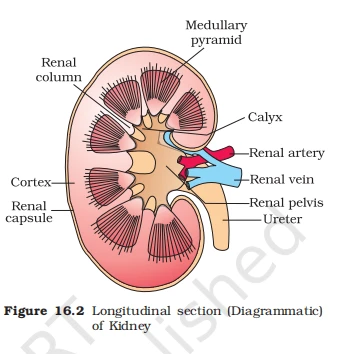

Diagrammatic longitudinal section of a human kidney showing cortex, medulla, pyramids, and renal pelvis

NEET Biology Longitudinal Section of Kidney

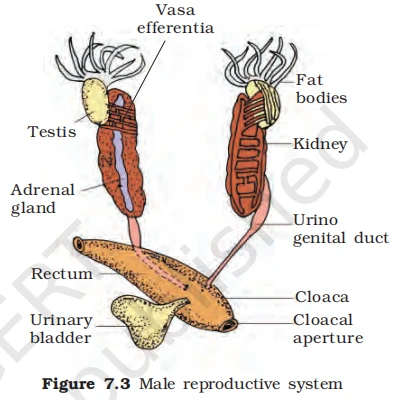

Anatomy of male frog reproductive system highlighting testes, vasa efferentia, kidneys, and cloaca

NEET Biology Male reproductive system

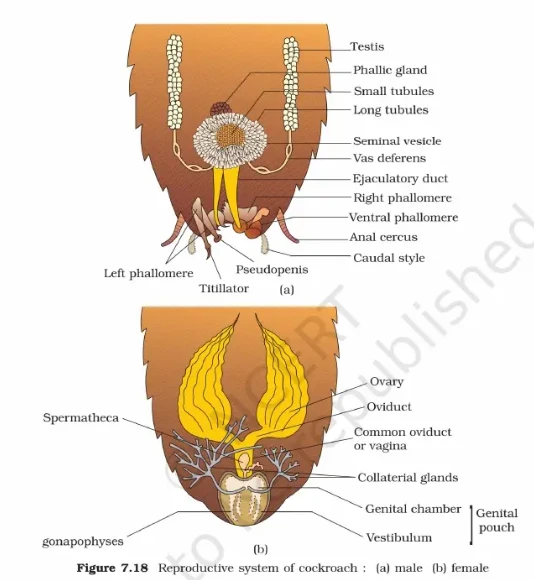

Comparison of male and female cockroach reproductive systems showing testes, ovaries, and genital pouches

NEET Biology Reproductive system of cockroach

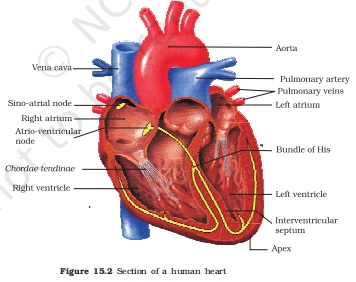

Internal view of the human heart showing chambers, valves, aorta, and conduction system

NEET Biology Section of human heart

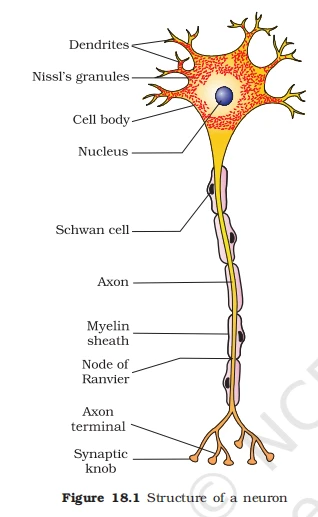

Detailed diagram of a neuron showing the cell body, dendrites, axon, myelin sheath, and synaptic knobs

NEET Biology Structure of neuron

Mastered diagrams? Now prove it by solving the NEET 2026 Mock Tests.

Why Diagrams are Important for Class 11 NEET Biology

Diagrams play a vital role in Class 11 NEET Biology preparation for several important reasons:

Visual Learning: Diagrams for the NEET exam help students visualise complex biological concepts, making them easier to understand and remember. For example, plant kingdom diagrams for NEET improve conceptual clarity.
Better Memory Retention: Visual aids are easier to recall during exams. A well-practised NEET Biology diagram creates a strong mental image that helps retain information for longer.
Exam Readiness: The NEET UG exam frequently includes diagram-based questions. The ability to accurately draw and interpret important diagrams for NEET Biology can significantly improve scores.
Concept Clarity: Class 11 Botany diagrams for NEET break down complicated processes into simple, step-by-step visuals. Topics such as photosynthesis and cell division become much easier to grasp through diagrams.
Quick Revision: Important diagrams for Class 11 Biology allow fast revision. Instead of rereading lengthy theory, students can quickly review a diagram to recall the complete concept.

Tips to Memorise Important Diagrams in Class 11 Botany for NEET

You should consistently practise important diagrams for Class 11 Botany to strengthen your NEET Biology preparation. Use these proven techniques:

Use NCERT Textbooks: Start with NCERT Biology Class 11, as it contains the most important diagrams for NEET. Understand every figure along with its labels.
Create a Diagram Checklist: Prepare a chapter-wise list of important diagrams for NEET Biology to track your progress.
Practise Drawing Regularly: Repeated practice of Class 11 Botany diagrams improves recall and helps you reproduce neat diagrams in the NEET exam.
Label Accurately: Always label every part correctly in NEET Biology diagrams. Even small labelling mistakes can cost marks.
Use Colour Coding: Highlight different parts using colours. This improves visual memory and makes NEET revision more effective.
Refer to Multiple Sources: Use trusted reference books and quality online resources to strengthen your understanding of NEET important diagrams.
Try Group Study: Studying with peers helps reinforce NEET Biology concepts. Quiz each other on diagrams and their functions.
Use Flashcards: Create flashcards featuring important NEET Biology diagrams on one side and labels on the other for quick self-testing.

By applying these strategies, students can effectively master important diagrams for Class 11 Botany and boost their NEET UG Biology score. Make sure to cover the complete NEET Biology syllabus, including both Botany and Zoology, for the best results.
